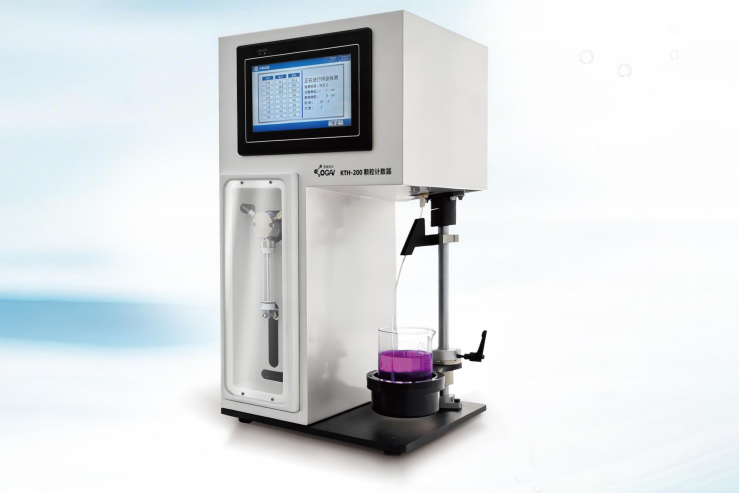

KT series particle counter- suitable for offline detection in chemical liquids and ultra-pure water laboratories
The KT series particle counter adopts the principles of orthogonal scattering or forward scattering. Its detection range is from 0.1 to 20 μm. It is suitable for laboratory offline detection of particles in chemical liquids and ultra-pure water.
Performance characteristics
1. Highly stable light source drive and weak signal pickup circuit, without abnormal counting; high stability and good repeatability
2. Precision syringe-type sampling system, achieving constant sampling speed and precise control of sampling volume
3. 7-inch color Android system LCD display, touch screen operation
4. It has the function of storing detection data. With 6GB of memory, it can store a large amount of data. It also has the functions of archiving, retrieving and analyzing the detection data. It is equipped with a USB interface, allowing the data to be stored on a USB drive
5. The instrument has data integrity features, including password login, multi-level permission management, operation logs, and data backup functions
6. Based on the multi-level permission management, the instrument can also allocate permissions for its various functions.
7. Embedded panel-type micro printer, with the option to set for automatic printing and manual printing.
8. It comes with multiple input methods and supports handwritten input, enabling the generation of Chinese annotations for the test reports.
9. TRS232 interface and the powerful data acquisition software enable the connection of an external computer to annotate, store and query the detection data.
Technology indexes
1. Light source: Near-infrared semiconductor laser，50~150mW
2. Detect the range of particle sizes：0.1~20μm
3. Detection channel：4~8 channel
4. Sampling speed：10~50ml/min
5. Ambient temperature：10~45°C；Maximum relative humidity: 90%
6. Data output：7-inch color touch screen；Micro-printer；LAN interface；USB interface；RS232/485（4-20mA optional）
7. Status indicate：Sensor window contamination；Light source status；Liquid leakage
8. Power supply：AC220V±20%；30W
9. Maximum preasure：0.7Mpa
10. Dimensions：410×255×468mm
KT-100H、KT-200H、KT-500H、KT-500F List of Key Indicators
Model | Material contact with liquid | Principle | Range of particle | Maximum Concentration |
KT-100H | Fused silica PEA PIFE | Right-angle scattering | 4 channel，0.1μm、0.15μm、0.2μm、0.3μm | 35000 particles/ml |
KT-200H | 8 channel，0.2μm、0.3μm、0.5μm、0.8dμm、1.0μm、1.3μm、1.8μm、2.0μm | 10000 particles/ml | ||
KT-500H | Forward scattering | 8 channel，0.5μm~20.0μm adjustable within this range | ||
KT-500F | Sapphire、PFA、PTFE |
